Safety Needle
- This safety needles made of high quality austenitic stainless steel.

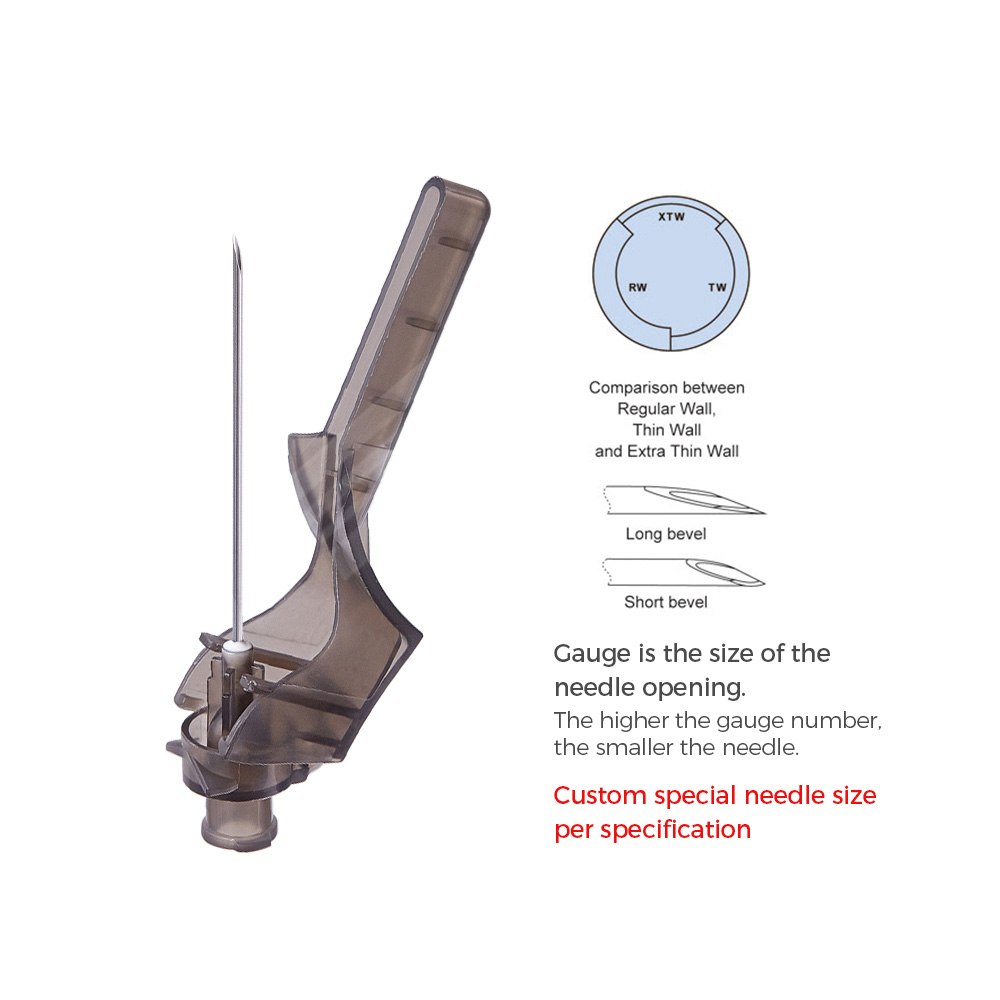

- The needle tube adopts the international popular thin wall tube design,with large inner diameter and high flow rate.

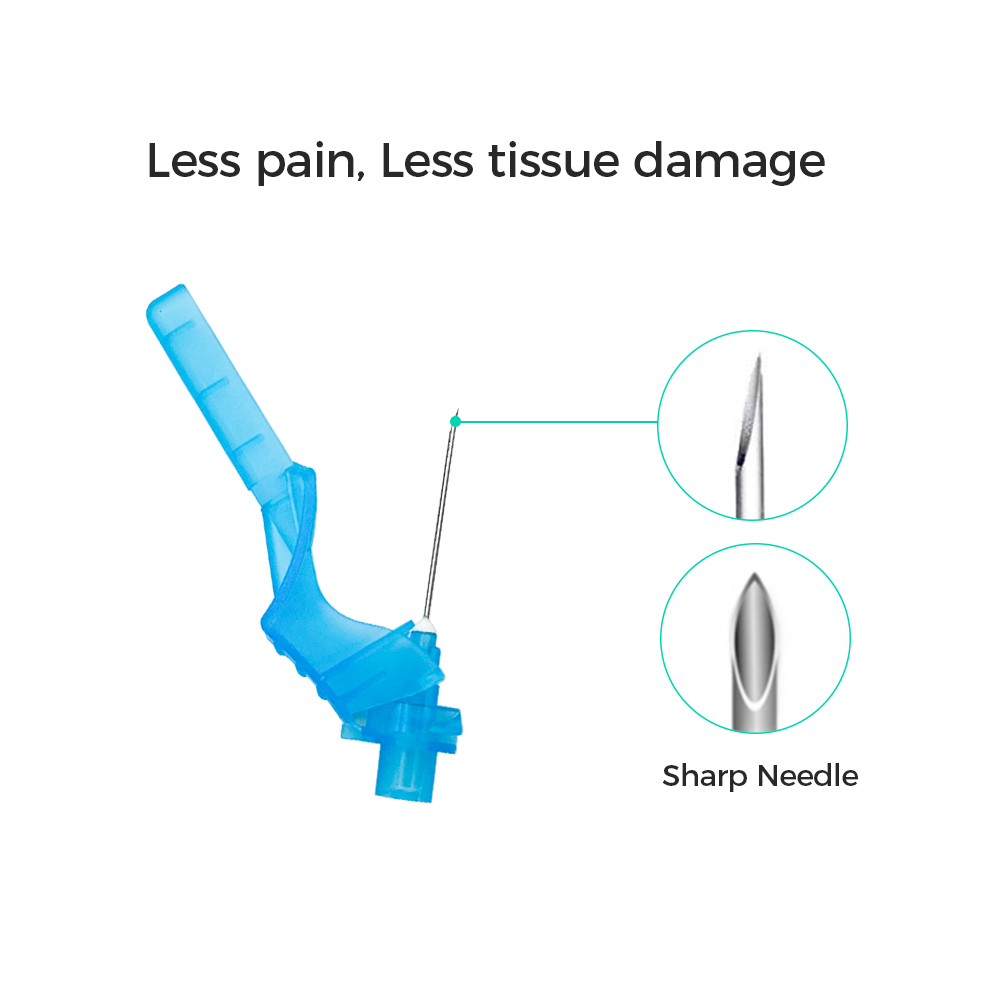

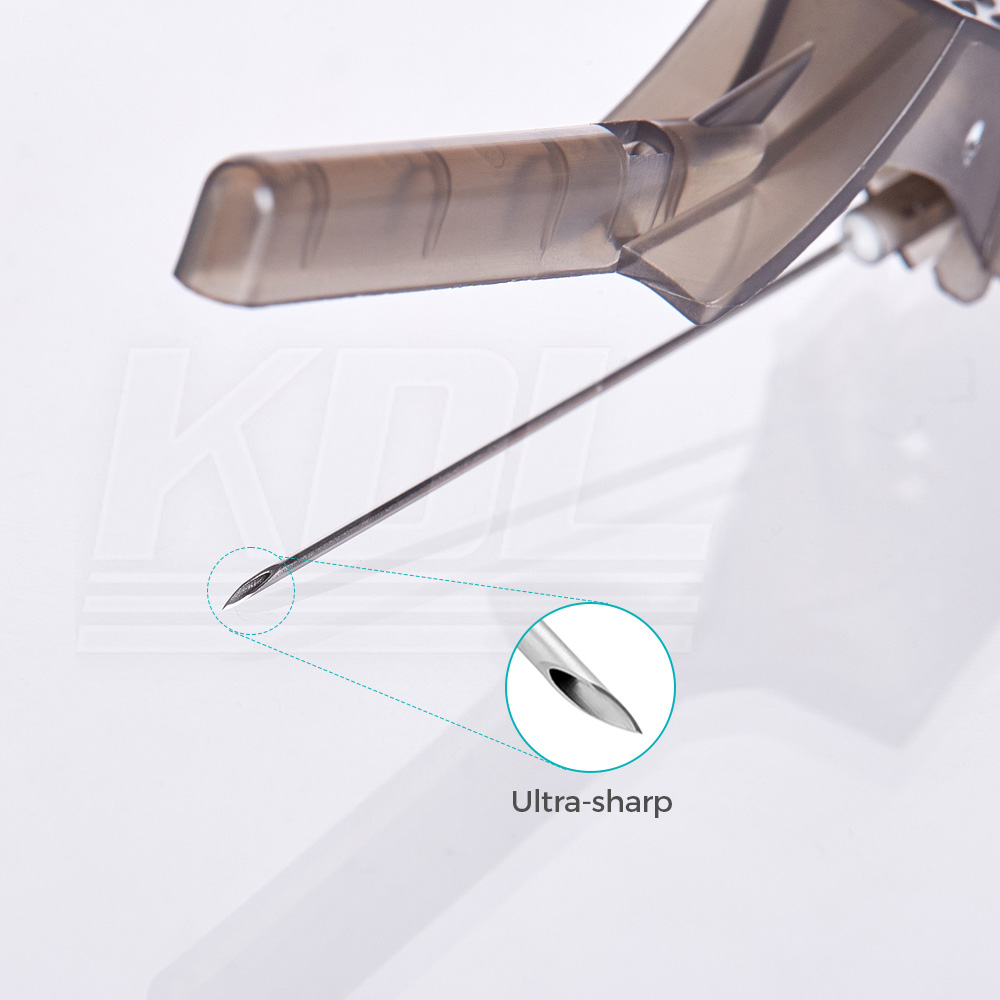

- Fine design of needle tip,good sharpness of three blade structure,fast needle puncture,less pain and less tissue damage.
- The 6:100 conical fitting produced according to international standards has accurate size and good compatibility with medical devices.

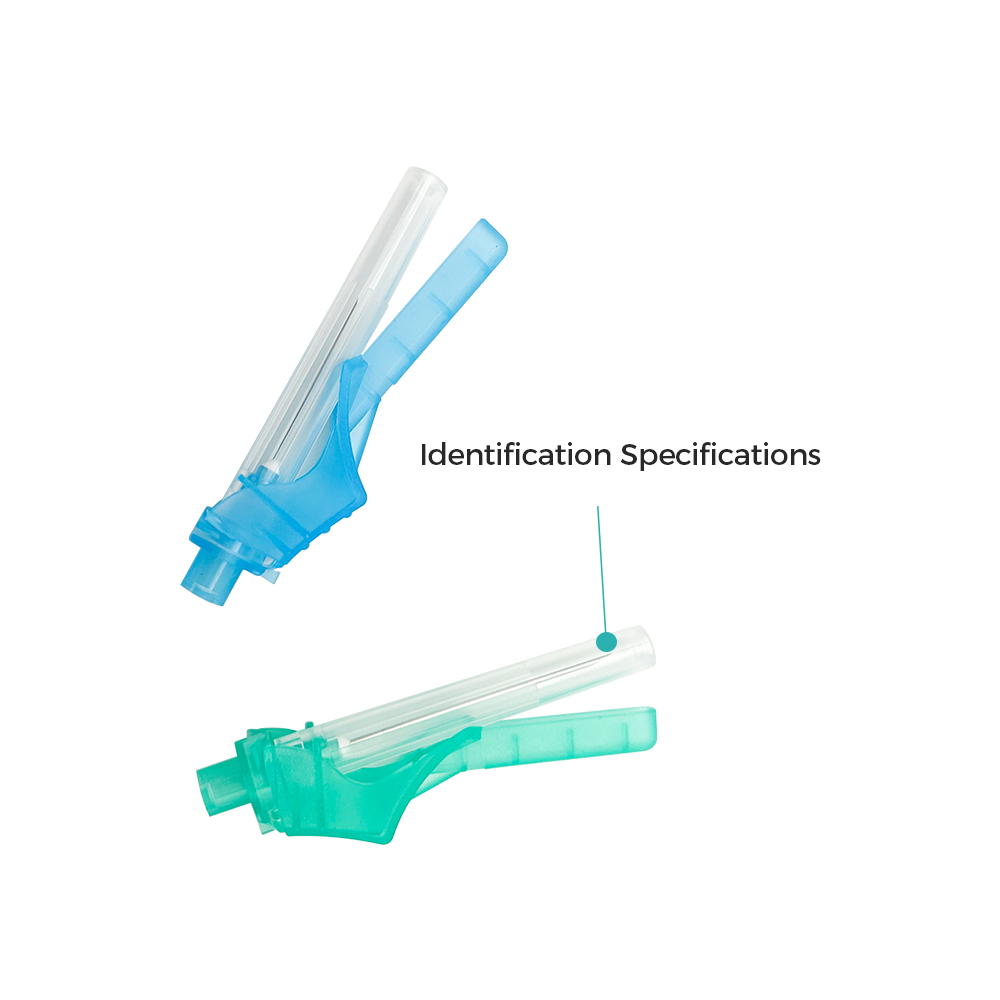

- The specification identified by the color of the needle hub is easy to distinguish and use,and the translucent design is adopted,so that the blood return can be easily observed.

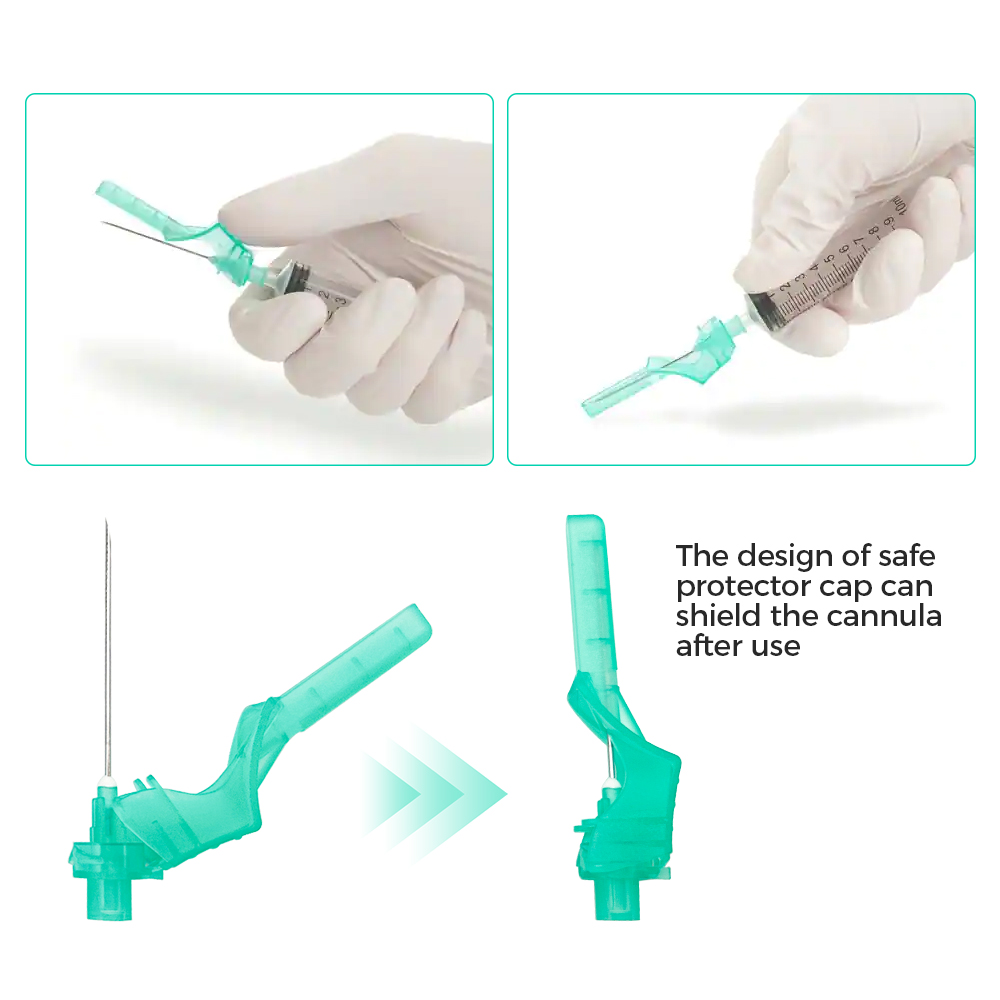

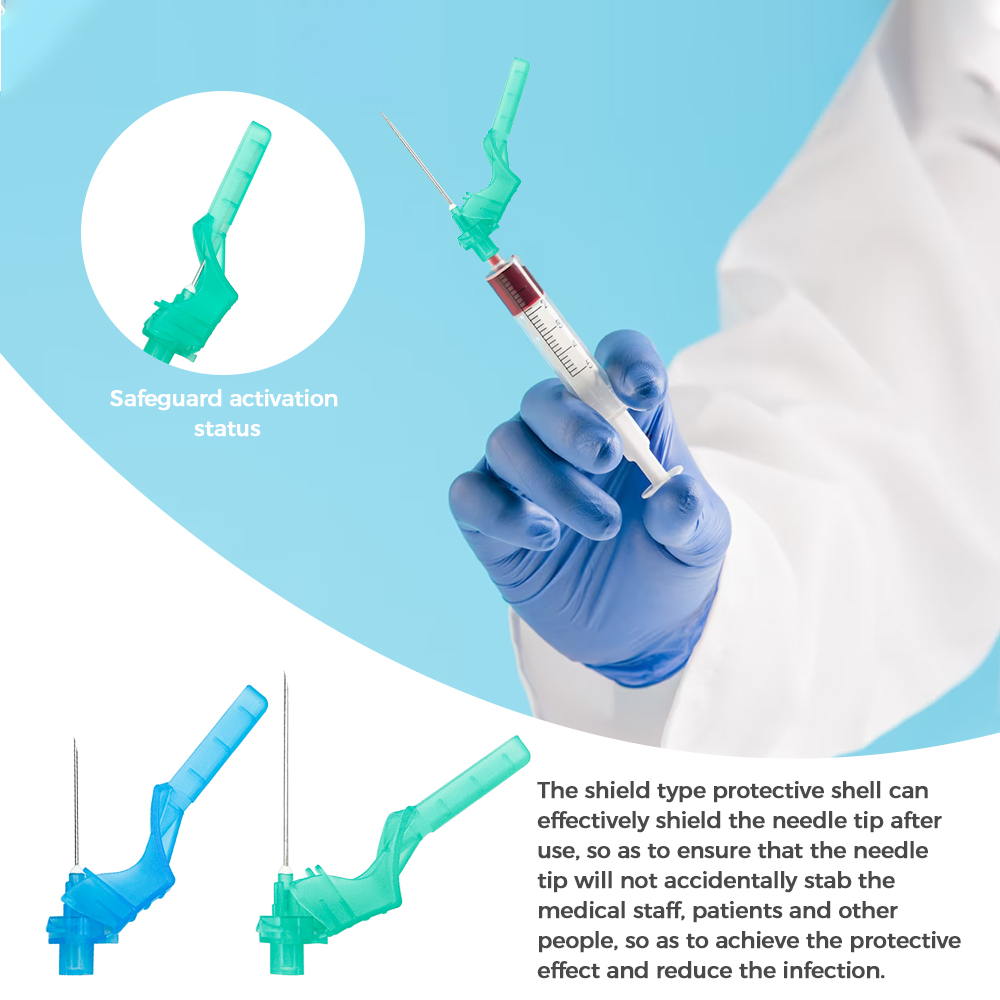

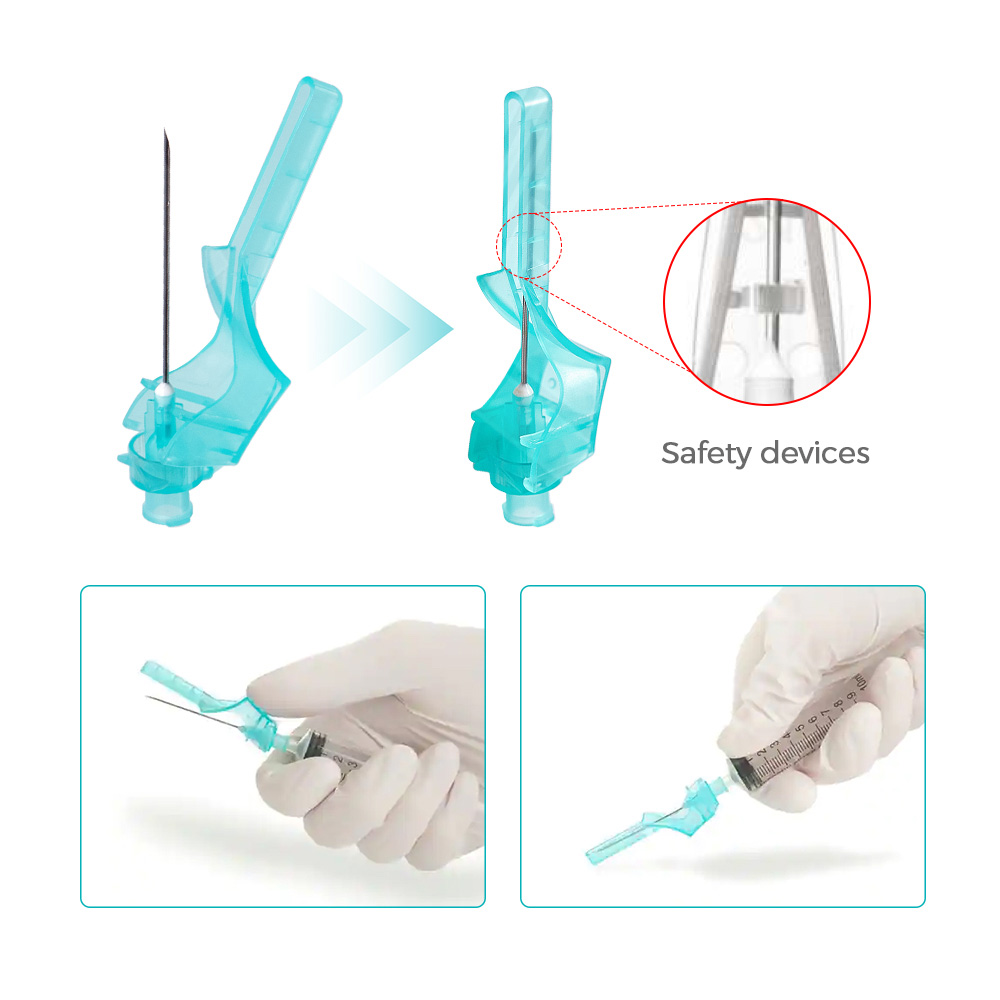

- The shield type protective shell can effectively shield the needle tip after use,so as to ensure that the needle tip will not accidentally stab the medical staff,patients and other people,so as to achieve the protective effect and reduce the infection.
Product Details
Model
| STN01 |
Specification
| OD | Gauge | Color Code | General Specification | Qty |
|---|---|---|---|---|
| 0.3 | 30G | Yellow | 0.3 X 13mm | 800 pcs/carton |
| 0.33 | 29G | Red | 0.33 X 13mm | 800 pcs/carton |
| 0.36 | 28G | Blue Green | 0.36 X 13mm | 800 pcs/carton |
| 0.4 | 27G | Medium Grey | 0.4 X 13mm | 800 pcs/carton |
| 0.45 | 26G | Brown | 0.45 X 16mm | 800 pcs/carton |
| 0.5 | 25G | Orange | 0.5 X 16mm | 800 pcs/carton |
| 0.56 | 24G | Medium Purple | 0.55 X 20mm | 800 pcs/carton |
| 0.6 | 23G | Dark Blue | 0.6 X 25mm | 800 pcs/carton |
| 0.7 | 22G | Black | 0.7 X 32mm | 800 pcs/carton |
| 0.8 | 21G | Dark Green | 0.8 X 36mm | 800 pcs/carton |
| 0.9 | 20G | Yellow | 0.9 X 36mm | 800 pcs/carton |
| 1.1 | 19G | Cream | 1.1 X 36mm | 800 pcs/carton |
| 1.2 | 18G | Pink | 1.2 X 36mm | 800 pcs/carton |

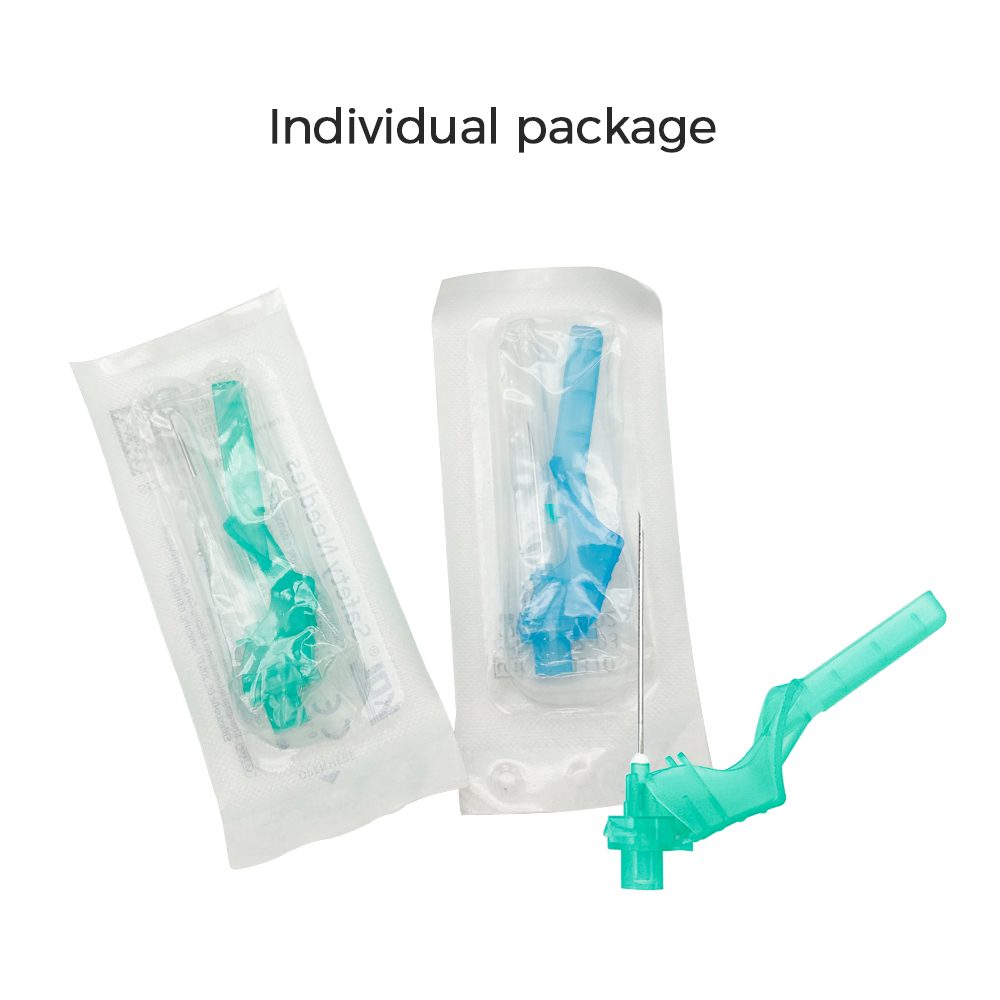

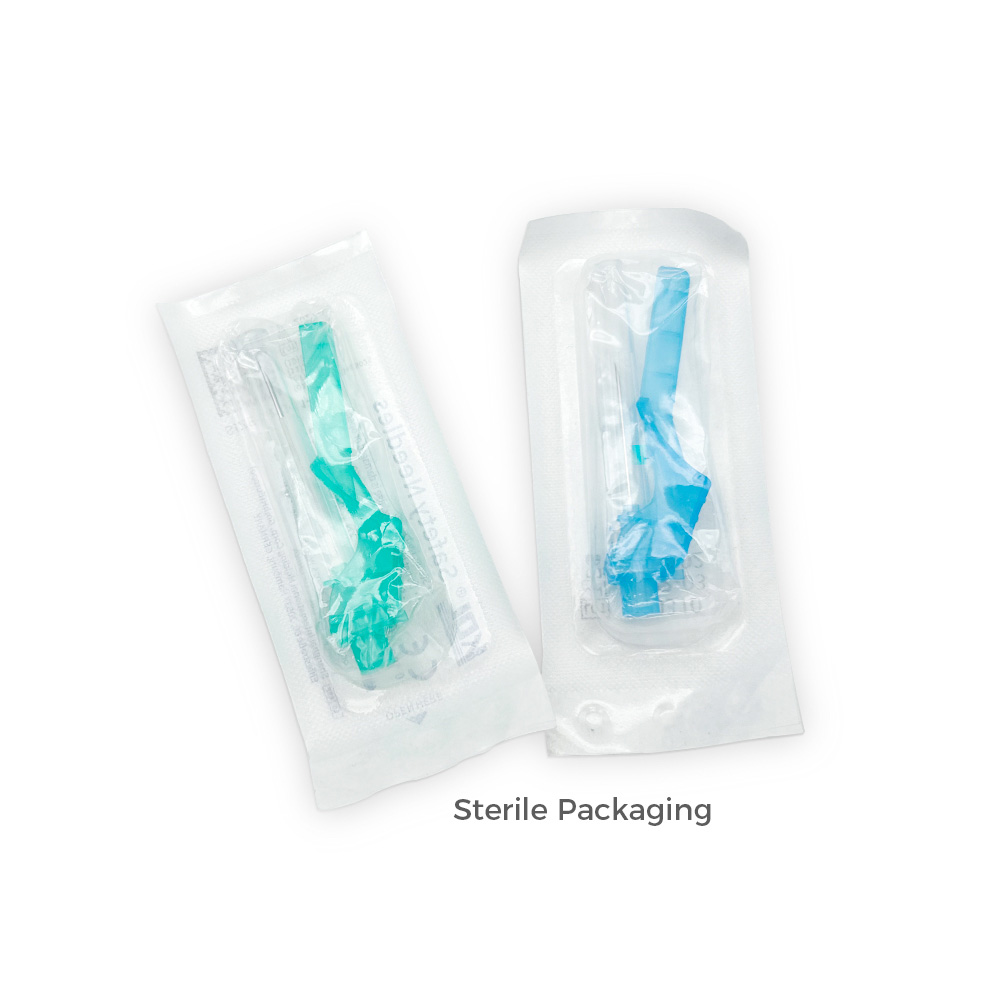

Packing
| 800 pcs | carton |
Product Features

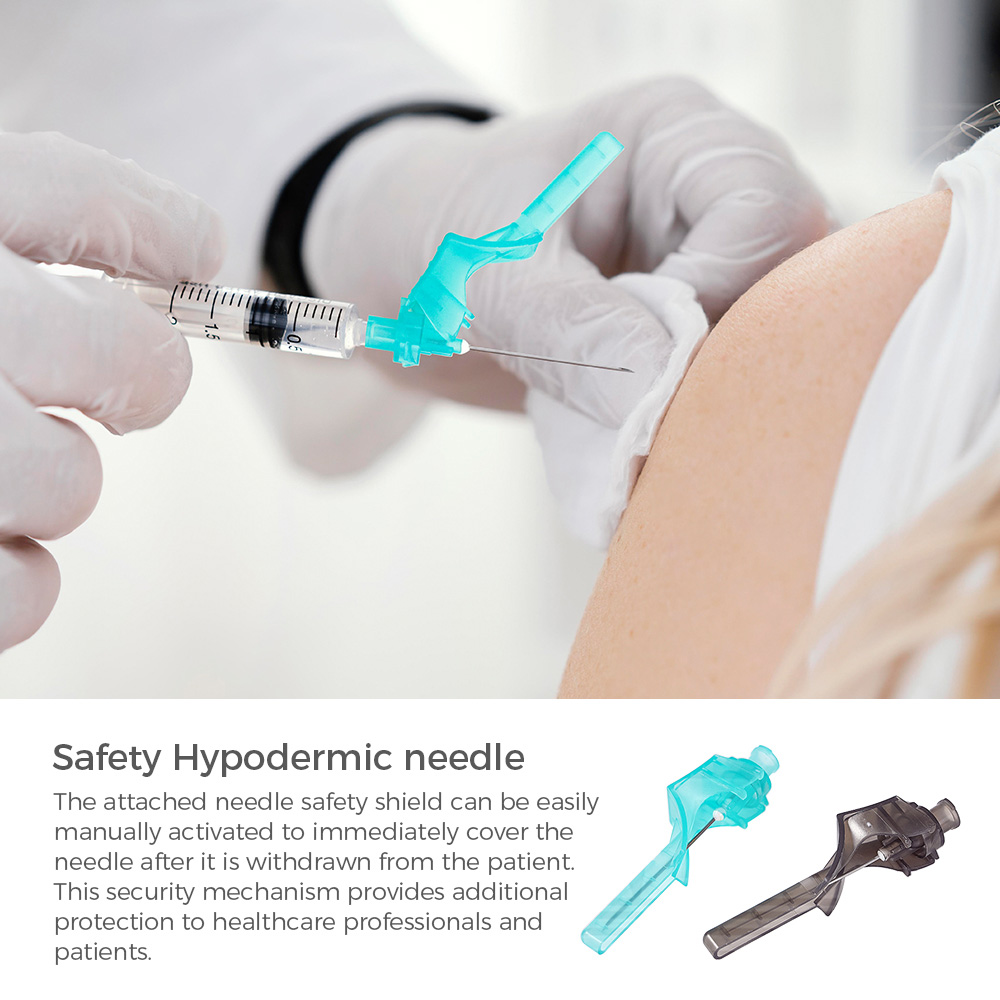

| Intended Use | The safety needles are intended to be used with a Luer slip or Luer lock syringe for aspiration and injection of fluids for medical purpose.After withdrawal of the needle from the body,the attached needle safety shield can be manually activated to cover the needle immediately after use to minimize risk of accidental needle-stick. |
| Structure and Compostion | Safety Needles,Protective Cap,Needle Tube. |
| Main Material | PP 1120,PP 5450XT,SUS304 |
| Shelf Life | 5 years |
| Certification and Quality Assurance | CE,FDA,ISO13485. |
