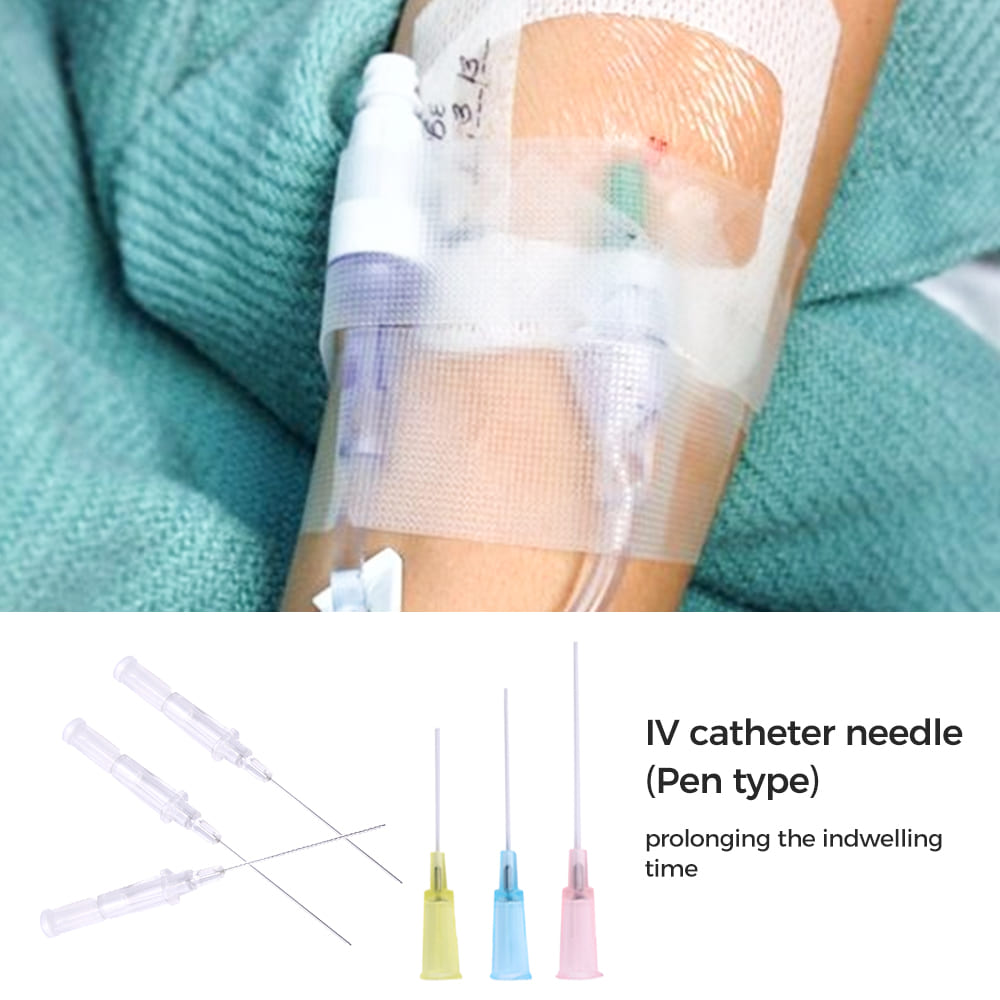

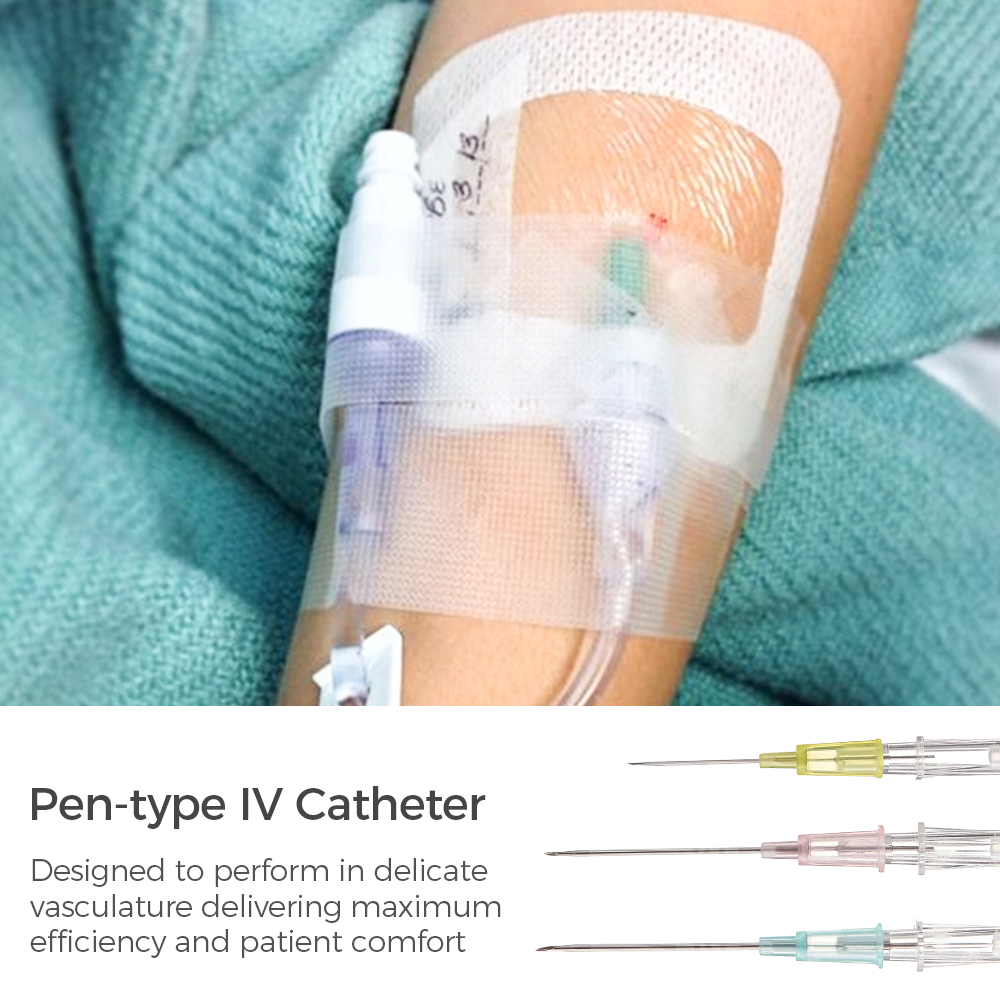

IV Catheter Needle-Pen type
- 14G,16G,17G,18G,20G,22G,24G,26G.
- Sterile,non-pyrogenic,medical-grade raw material.
- Maximum 72 hours dwelling.

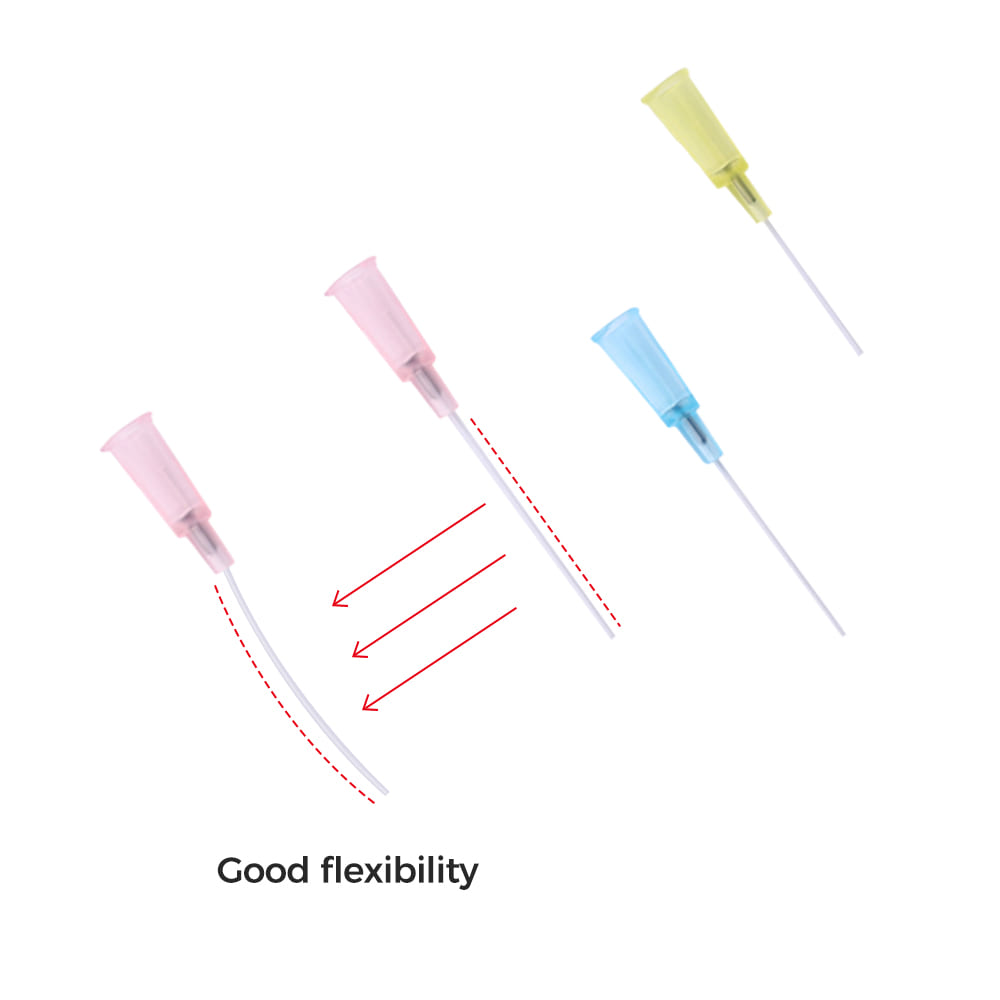

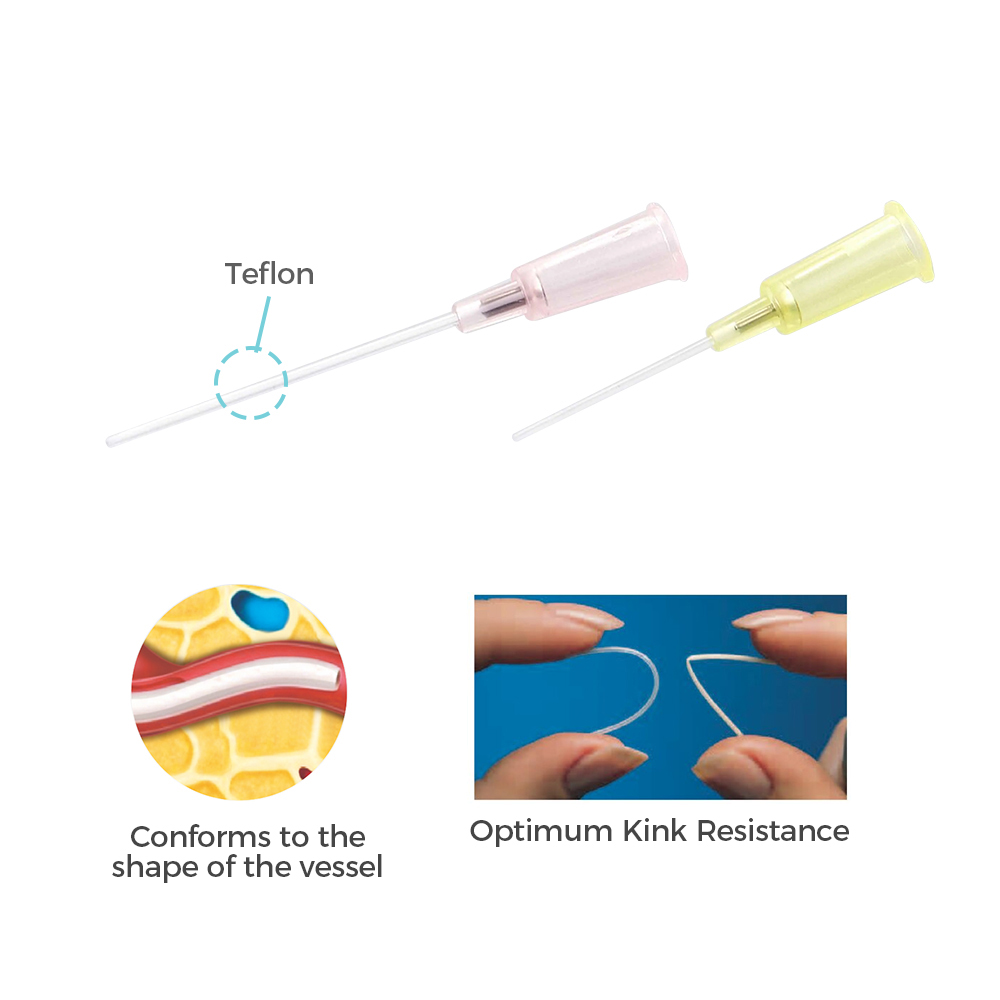

- FEP or PUR peripheral catheter.
Product Details
Model
| ICP01 |
Specification
| OD | Gauge | Color Code | General Specifications | Packing Quantity |
|---|---|---|---|---|
| 0.6 | 26G | Purple | 26G X 3/4" | 2000 pcs/carton |
| 0.7 | 24G | Yellow | 24G X 3/4" | 2000 pcs/carton |
| 0.9 | 22G | Deep Blue | 22G X 1" | 2000 pcs/carton |
| 1.1 | 20G | Pink | 20G X 1 1/4" | 2000 pcs/carton |
| 1.3 | 18G | Dark Green | 18G X 1 1/4" | 2000 pcs/carton |
| 1.6 | 16G | Medium Grey | 16G X 2" | 2000 pcs/carton |
| 2.1 | 14G | Orange | 14G X 2" | 2000 pcs/carton |
Packing
| 100pcs | Box |
| 2000pcs | Carton |
| Carton Size | 400*285*380mm |
Product Features
| Intended Use | Insertion of the vascular system is done with a pen-type intravenous catheter,effectively avoiding cross-infection. |

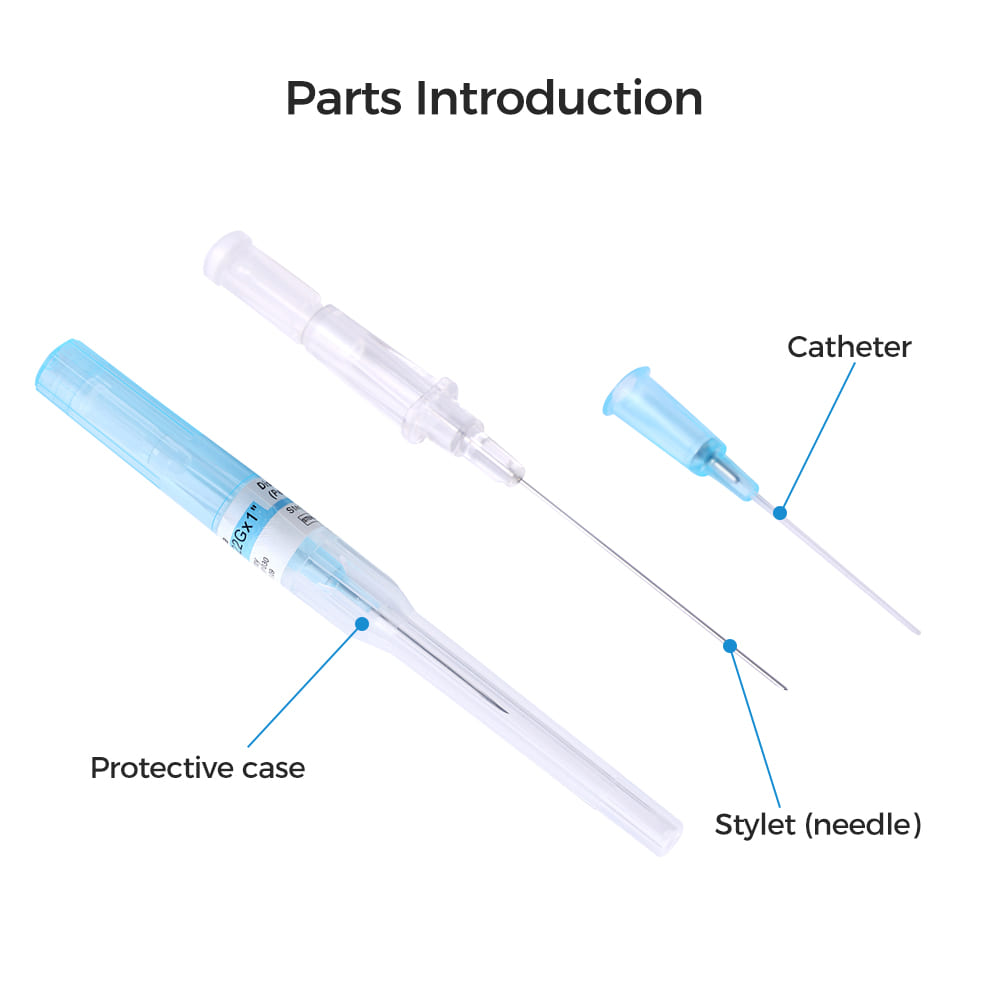

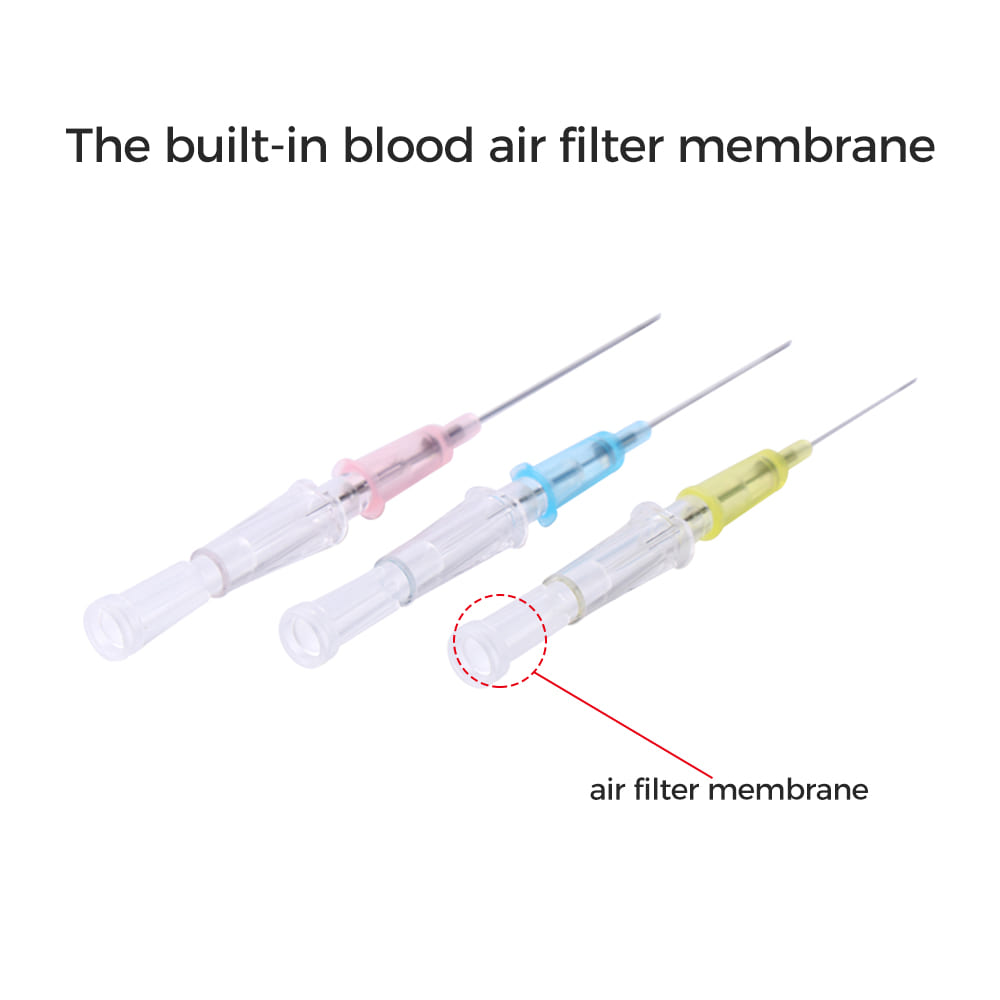

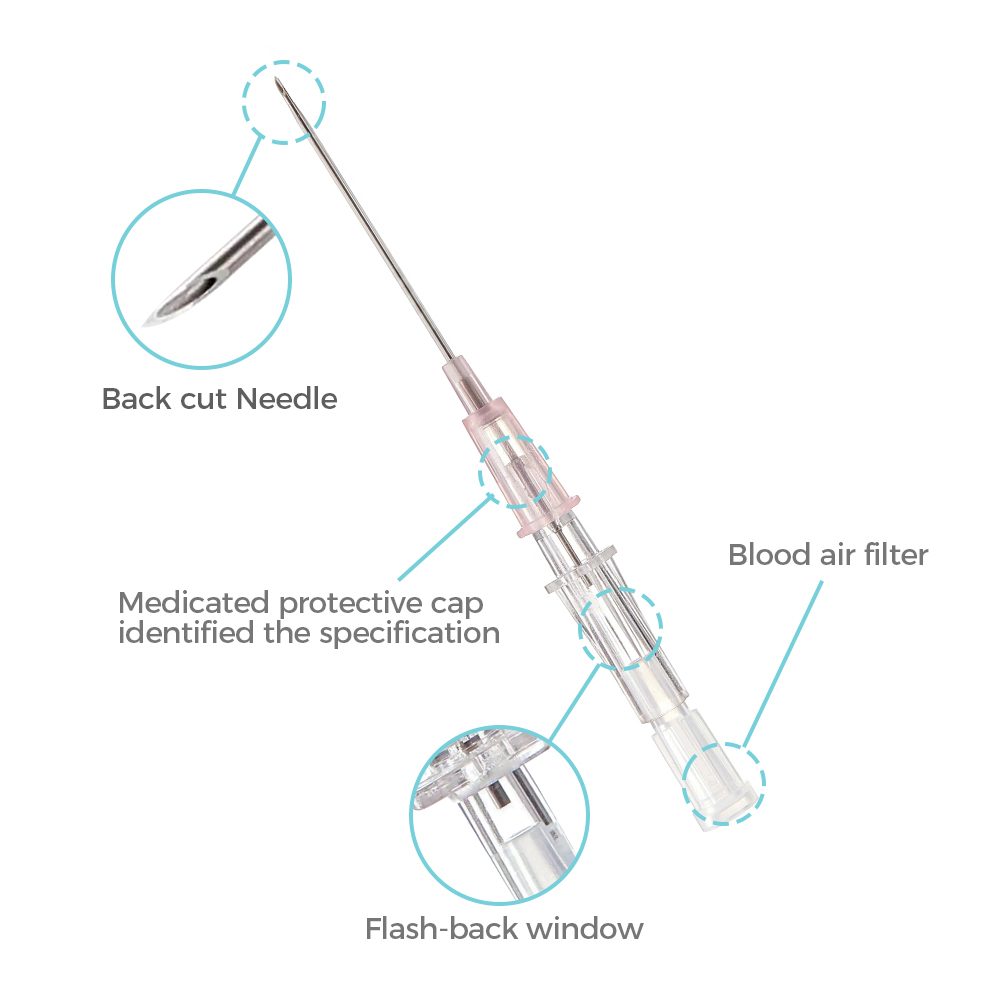

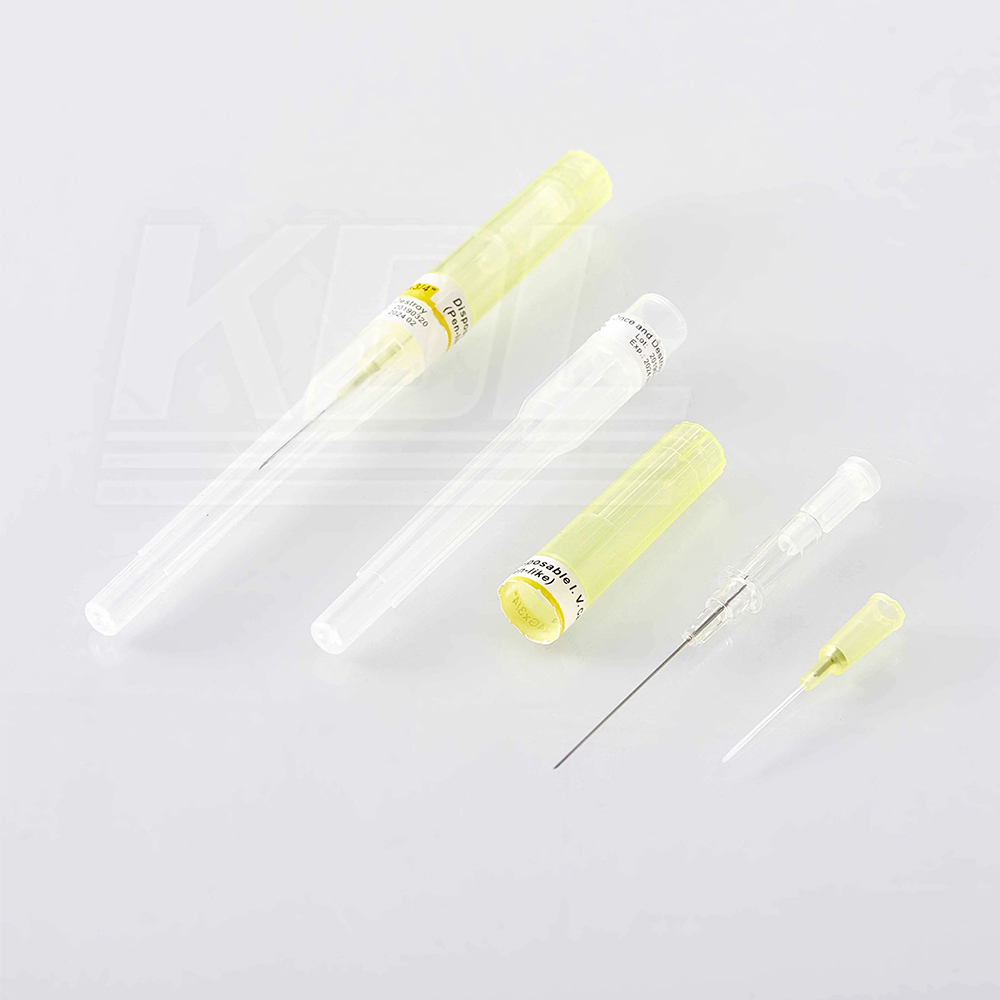

| Structure and Composition | The pen IV catheter consists of a protective cap,a peripheral catheter,a pressure cannula,a catheter hub,a needle hub,a syringe,an outlet connector,an outlet connector filter membrane,a protective cover,and a positioning ring. |
| Main Materials | PP,SUS304 stainless steel casing,Silicone oil,FEP/PUR,PC. |
| Shelf Life | 5 years |
| Certification and Quality Assurance | CE,ISO13485. |
