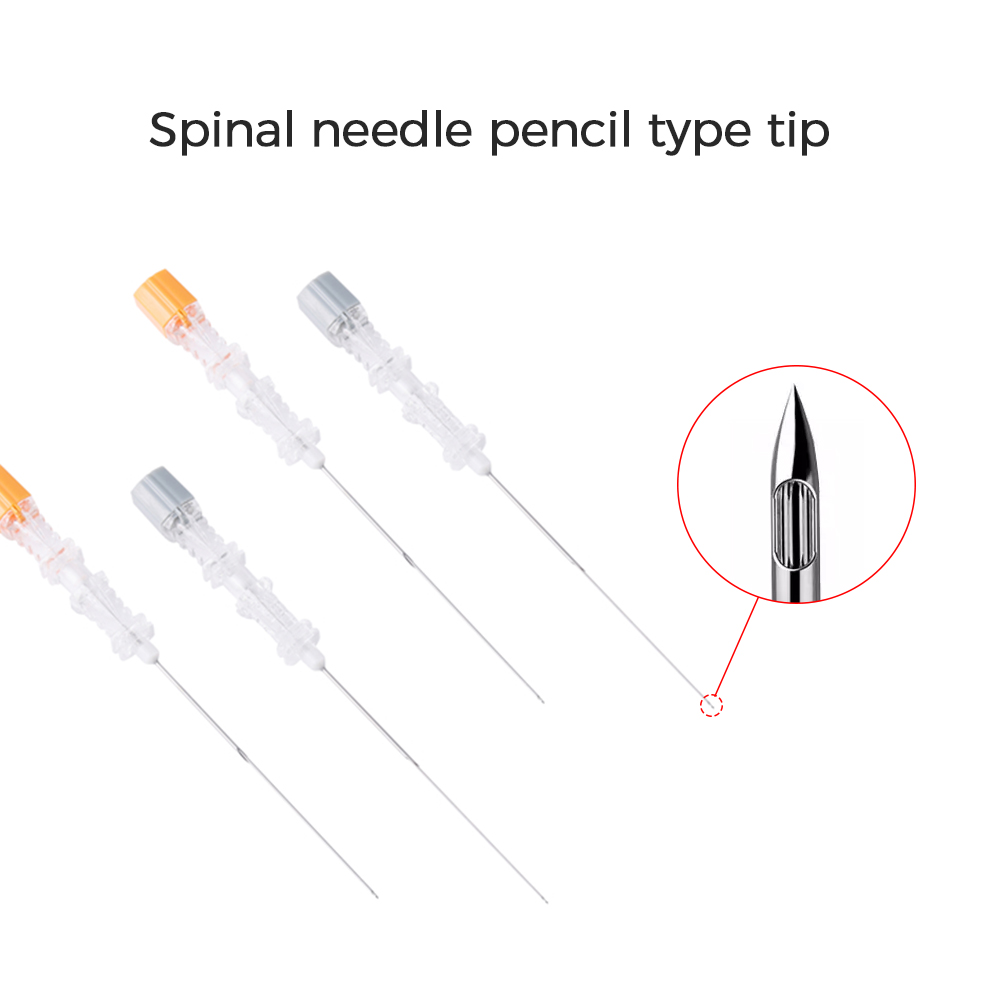

Spinal Needle Pencil Type

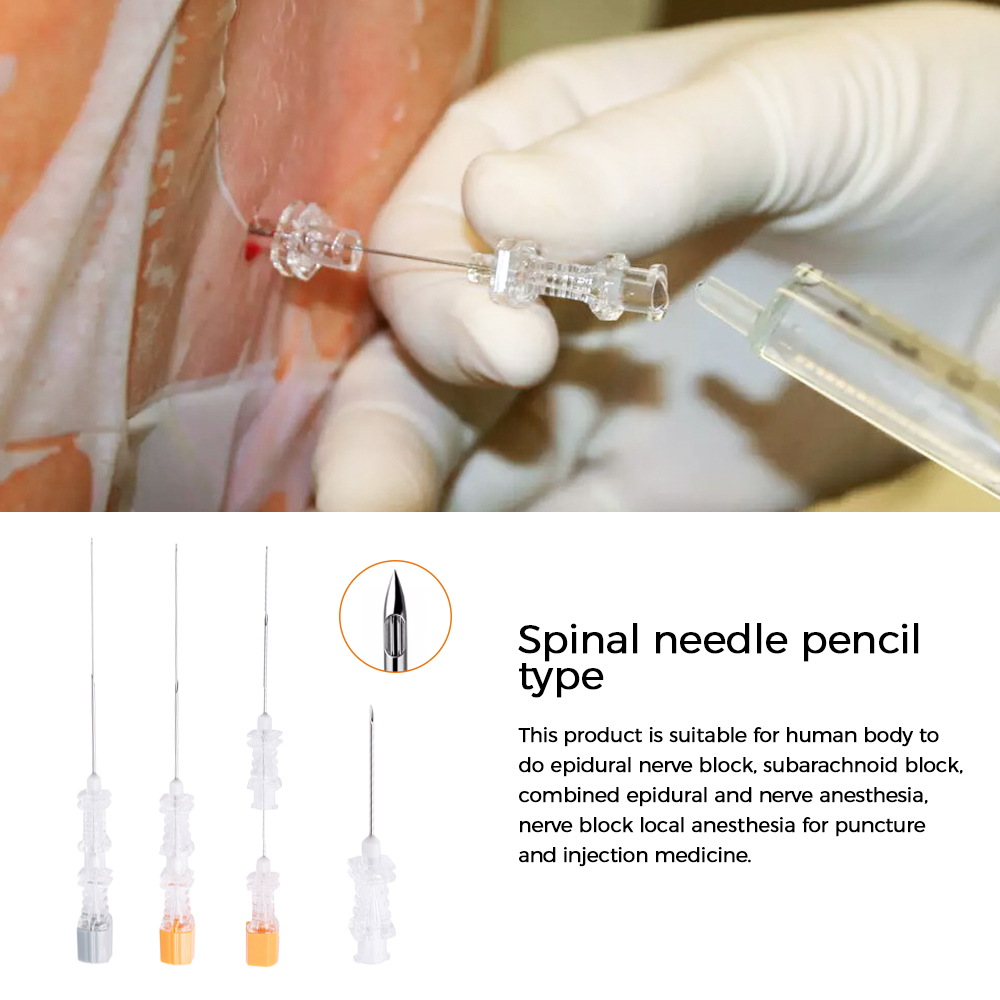

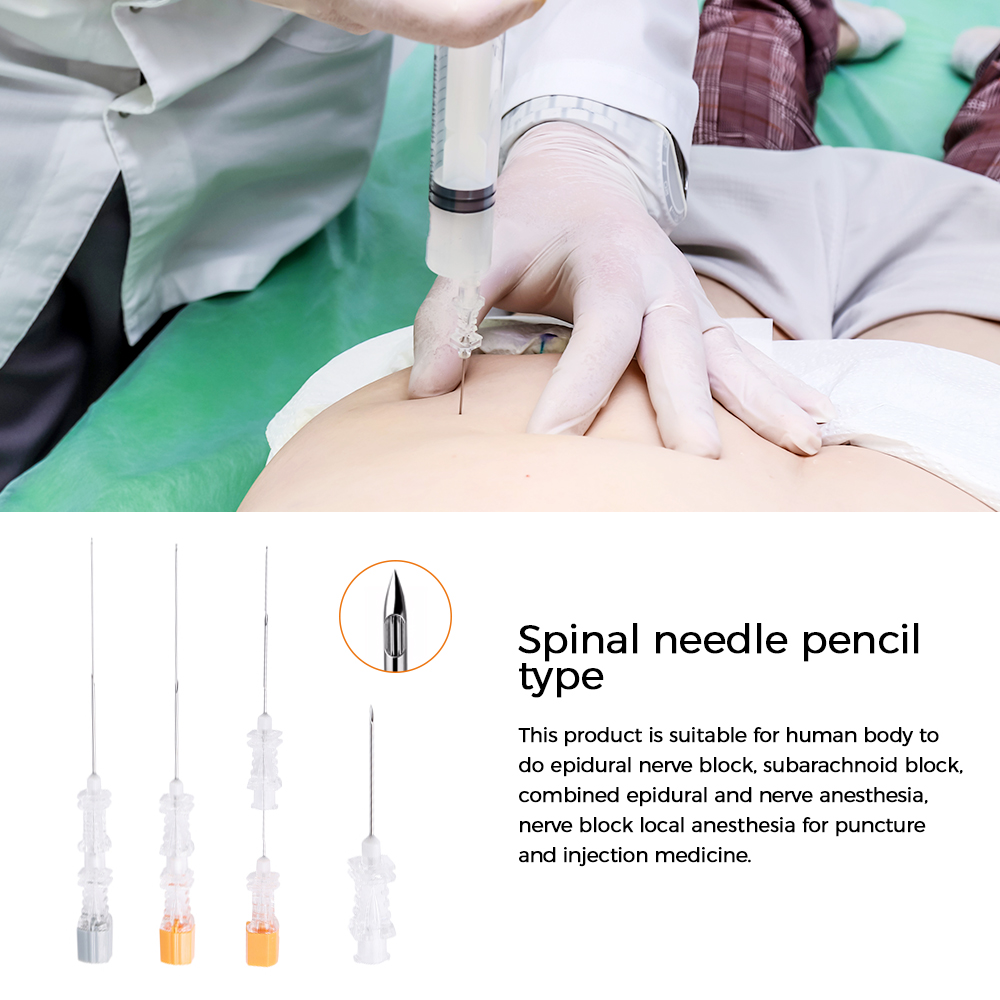

- This Anesthesia needle product is suitable for human body to do epidural nerve block,subarachnoid block,combined epidural and nerve anesthesia,nerve block local anesthesia for puncture and injection medicine.
- Made of high-quality Austrian body stainless steel.

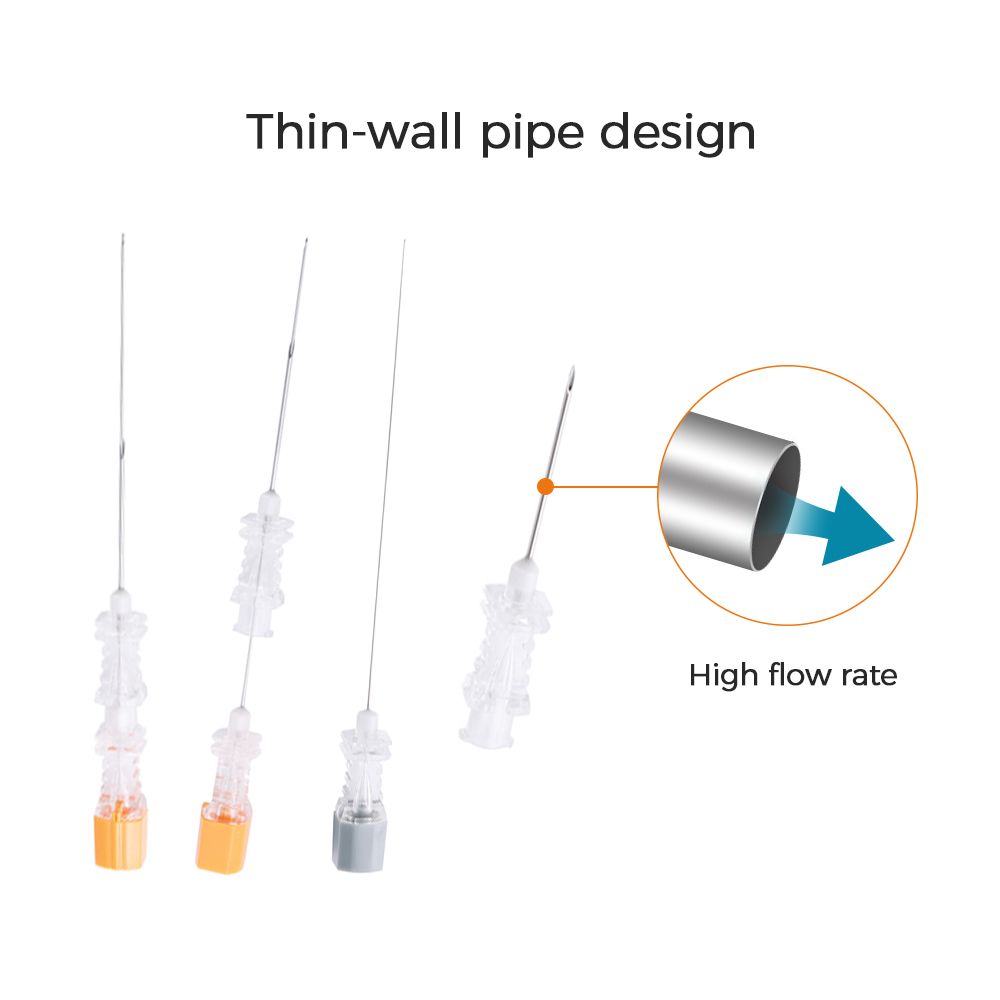

- The needle tube adopts international popular thin-wall pipe design with large inner diameter and high flow rate.
- According to the international standard,the 6:100 conical fitting is accurate in size and has good compatibility with medical devices.
- There are four types including spinal,epidural,combined anesthesia needle,which can meet different clinical purposes.

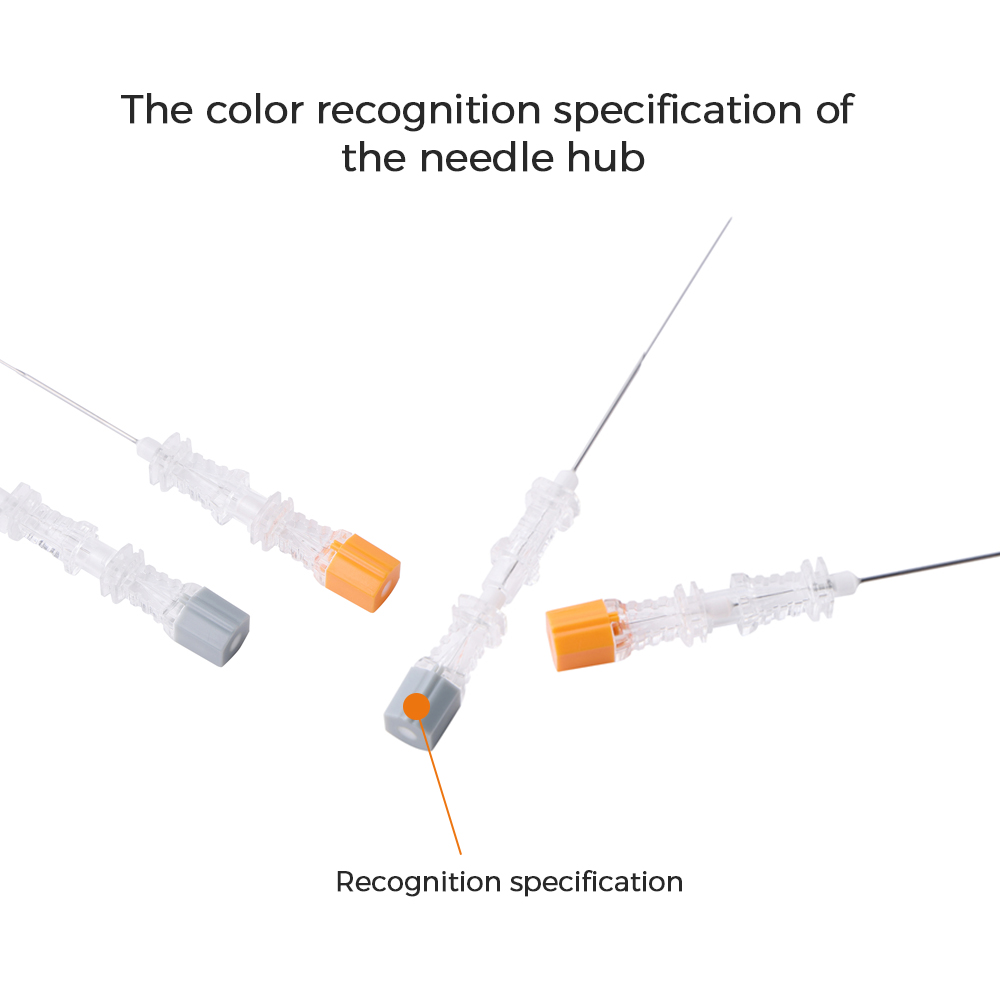

- The color recognition specification of the needle hub is convenient for distinguishing use.
Product Details
Anesthesia needle type I
| OD | Gauge | Color Code | General Specifications | Packing Quantity |
|---|---|---|---|---|
| 0.4 | 27G | Medium Grey | 27G×3 1/2" | 2000pcs/carton |
| 0.45 | 26G | Brown | 26G×3 1/2" | 2000pcs/carton |
| 0.55 | 24G | Medium Purple | 24G×3 1/2" | 2000pcs/carton |
| 0.6 | 23G | Deep Blue | 23G×3 1/2" | 2000pcs/carton |
| 0.7 | 22G | Black | 22G×3 1/2" | 2000pcs/carton |
| 0.8 | 21G | Dark Green | 21G×3 1/2" | 2000pcs/carton |
| 0.9 | 20G | Yellow | 20G×3 1/2" | 2000pcs/carton |
| 1.1 | 19G | Cream | 19G×3 1/2" | 2000pcs/carton |
| 1.2 | 18G | Pink | 18G×3 1/2" | 2000pcs/carton |
| 1.6 | 16G | White | 16G×3 1/2" | 2000pcs/carton |
Anesthesia needle type II
| OD | Gauge | Color Code | General Specifications | Packing Quantity |
|---|---|---|---|---|
| 0.4 | 27G | Medium Grey | 27G×3 1/2" | 2000pcs/carton |
| 0.45 | 26G | Brown | 26G×3 1/2" | 2000pcs/carton |
| 0.5 | 25G | Orange | 25G×3 1/2" | 2000pcs/carton |
| 0.55 | 24G | Medium Purple | 24G×3 1/2" | 2000pcs/carton |
| 0.6 | 23G | Deep Blue | 23G×3 1/2" | 2000pcs/carton |
| 0.7 | 22G | Black | 22G×3 1/2" | 2000pcs/carton |
| 0.8 | 21G | Dark Green | 21G×3 1/2" | 2000pcs/carton |
The Epidural Needle
| OD | Gauge | Color Code | General Specifications | Packing Quantity |
|---|---|---|---|---|
| 0.9 | 20G | Yellow | 20G×3 1/2" | 2000 pcs/carton |
| 1.1 | 19G | Cream | 19G×3 1/2" | 2000 pcs/carton |
| 1.2 | 18G | Pink | 18G×3 1/2" | 2000 pcs/carton |
| 1.6 | 16G | White | 16G×3 1/2" | 2000 pcs/carton |
Nerve Block Anesthesia Needle
| OD | Gauge | Color Code | General Specifications | Packing Quantity |
|---|---|---|---|---|
| 0.4 | 27G | Medium Grey | 27G×3 1/2" | 2000 pcs/carton |
| 0.45 | 26G | Brown | 26G×3 1/2" | 2000 pcs/carton |
| 0.55 | 24G | Medium Purple | 24G×3 1/2" | 2000 pcs/carton |
| 0.6 | 23G | Deep Blue | 23G×3 1/2" | 2000 pcs/carton |
| 0.7 | 22G | Black | 22G×3 1/2" | 2000 pcs/carton |
| 0.8 | 21G | Dark Green | 21G×3 1/2" | 2000 pcs/carton |
| 0.9 | 20G | Yellow | 20G×3 1/2" | 2000 pcs/carton |
| 1.1 | 19G | Cream | 19G×3 1/2" | 2000 pcs/carton |
| 1.2 | 18G | Pink | 18G×3 1/2" | 2000 pcs/carton |
Combined Anesthesia Needle Type I
| OD | Gauge | Color Code | ||
|---|---|---|---|---|
| 0.4 | 27G | Medium Grey | 27G×3 1/2" | 1000pcs/carton |
Product Features
| Intended Use | Spinal needles are applied to puncture,drug injection,and cerebrospinal fluid collection through lumbar vertebra. Epidural needles are applied to puncture the human body epidural, anaesthesia catheter insertion,injection of drugs. Combined anaesthesia needles are used in CSEA.Integrating the benefits of both Spinal anaesthesia and epidural anaesthesia,CSEA gives a rapid onset of action and produces definite effect.In addition,it is not restricted by surgery time and the dosage of local anaesthetic is low,thus reducing the risk of toxic reaction of anaesthesia.It can also be used for post-operative analgesia,and this method has been widely applied in domestic and oversea clinical practice. Products are asked by fully trained professional and technical training doctors. |
| Structure and Composition | Disposable anaesthesia needle is consisted of protective cap,needle hub,stylet,stylet hub,needle hub insert,needle tube. |
| Main Material | PP,ABS,PC,SUS304 Stainless Steel Cannula,Silicone Oil. |
| Shelf Life | 5 years |
| Certification and Quality Assurance | CE,ISO13485. |
