Veterinary IV Catheter
- 14G,16G,17G,18G,20G,22G,24G,26G.
- Sterile,non-pyrogenic.
- Veterinary use only.
- Radiopaque lines for X-ray visibility.
- The mini wings for patient comfort.
- Colour-coded hub for easy size recognition.
- Flash-back window.
- Isolation of blood.
- Back cut bevel extremely sharp and back-cut for smooth Insertion.
- PU biomaterial catheter.

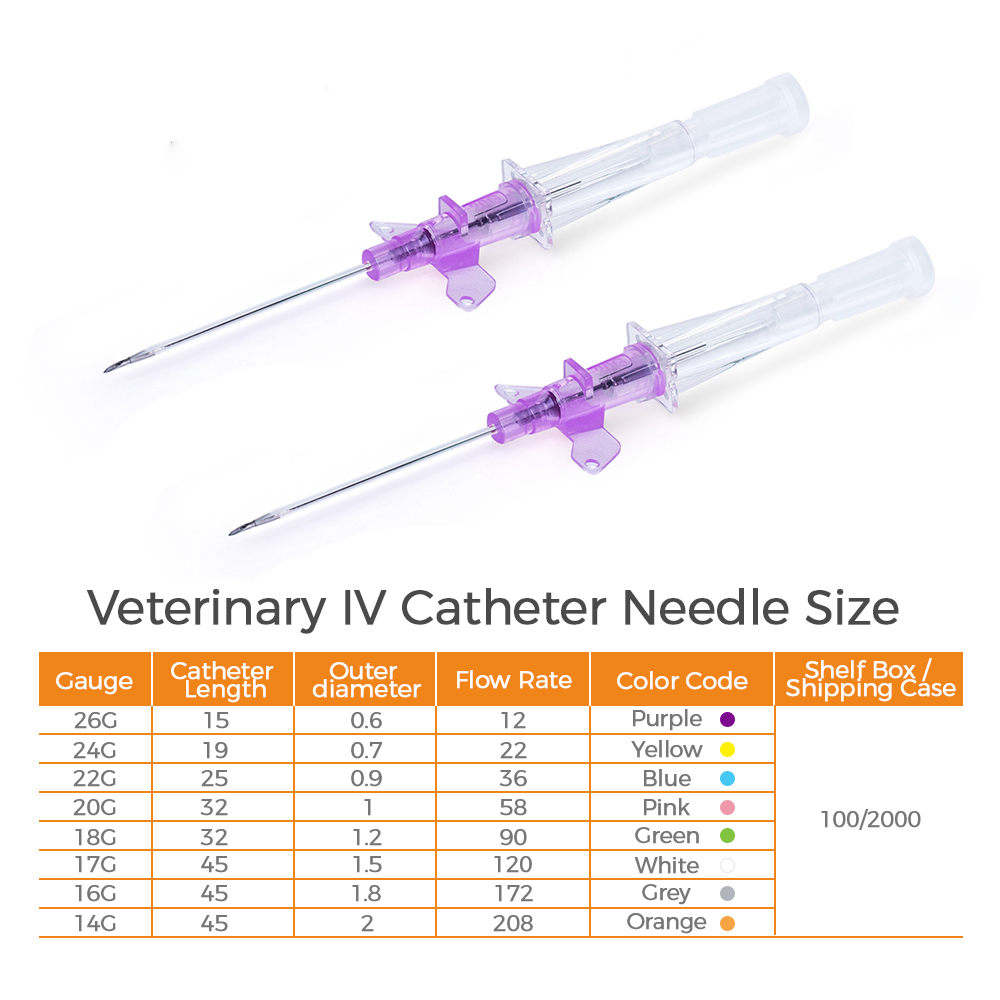

Specification
| Gauge | Catheter Length | Outer Diameter | Flow Rate | Color Code |
|---|---|---|---|---|
| 26G | 15 | 0.6 | 12 | Purple |
| 24G | 19 | 0.7 | 22 | Yellow |
| 22G | 25 | 0.9 | 36 | Blue |
| 20G | 32 | 1 | 58 | Pink |
| 18G | 32 | 1.2 | 90 | Green |
| 17G | 45 | 1.5 | 120 | White |
| 16G | 45 | 1.8 | 172 | Grey |
| 14G | 45 | 2 | 208 | Orange |
Product Features
| Intended Use | The Veterinary IV Catheter is inserted into the vascular system to withdraw blood samples,administer fluid intravenously. |
| Structure and Composition | Protective cap,peripheral catheter,pressure sleeve,catheter hub,rubber stopper,needle hub,needle tube,air-outlet filtration membrane,air-outlet filtration connector. |
| Main Material | PP,SUS304 Stainless Steel Cannula,Silicone Oil,FEP/PUR,PU,PC |
| Shelf Life | 5 years |
| Certification and Quality Assurance | / |
